Description

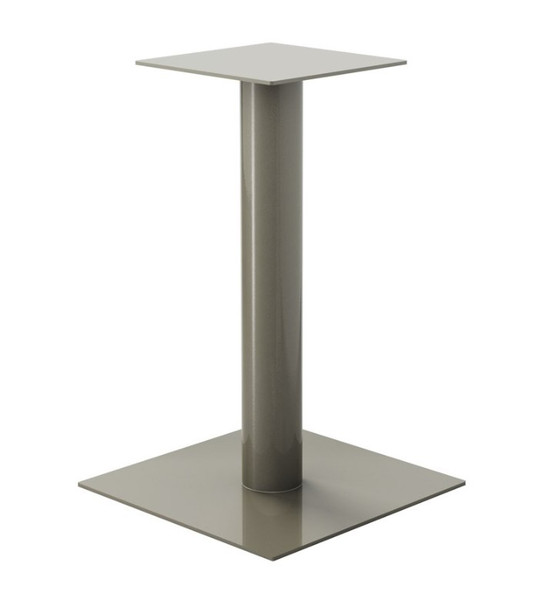

Our popular low profile bases are now available with square and rectangle bases! The 187X pedestal base is an excellent choice to maximize space under a table, as the low profile make the base disappear into the floor while still maintaining the stability and mobility needed in a freestanding table. Our standard style has no levelers and it sits flat on the floor almost undetected by your feet. Levelers are offered as an option, and position the base about 1" off the floor.
- Height: 27-3/4"; 40-1/4"
- Construction: Bolted Assembly and Welded Construction
- Finish: Black (standard)
- Lead Time: Standard Black finish - 2-3 weeks. Require 2-1/2 to 3 week lead time for twelve (12) powder coat finishes
- Column diameter: 2-1/4"
- Mounting plate: Fabricated Steel 4 gauge x 12" x 12"; requires (12) #12-14 screws
- Leveler foot allows additional 3/4" upward height adjustment for uneven floors
- 330 lbs. vertical load rating per base
- Pricing is per base
Base Spread | Weight | Recommended Max. Top Size |
18" x 18" | 39 | 36" Round / 36" Square |
23-3/4" x 23-3/4" | 56 | 48" Round / 42" Square |
Additional Information
Color/Finsh : |
Black (standard), Black wrinkle, Brushed steel (Premium finish), Champagne, Dark tone, Gray (Medium), Inner tone light, Light brown (Sand), Light tone, Medium tone, Polished Chrome, Silver, Sky White, White (Soft) |
Column Tubing : |
13 gauge wall |
Construction : |
Welded Construction and Bolted Assembly |
Cutting : |
Can be custom cut at factory |
Diameter : |
2-1/4" |
Function/Application : |
Table Bases |
Height : |
27-3/4", 40-3/4" |
Material : |
Metal / Steel |
Mounting-Style : |
12" Square |
Base Spread : |
18" Square, 23-3/4" Square |
Height Adjustment : |
3/4" |
Load Rating : |
330 lbs (150kg) static vertical load |
Packing Units: |
Single |
Shape : |
Round |
